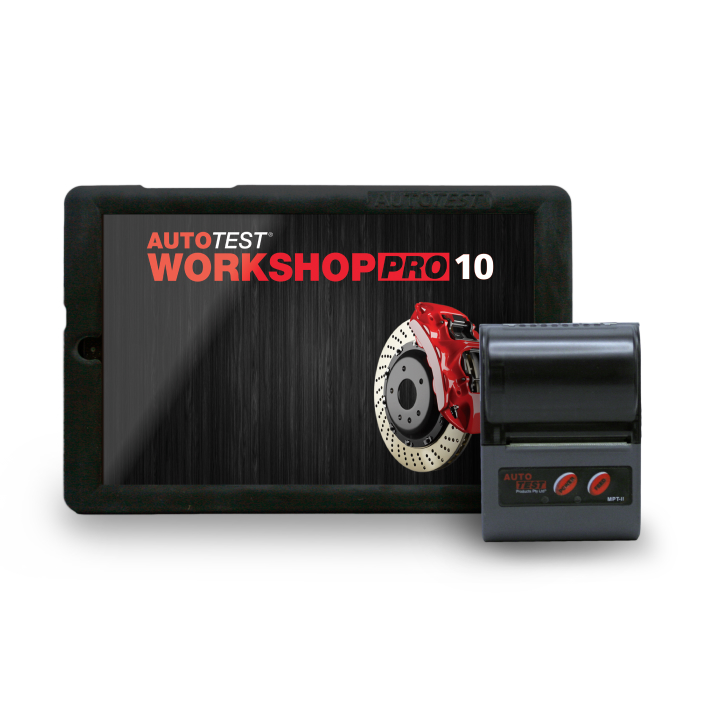

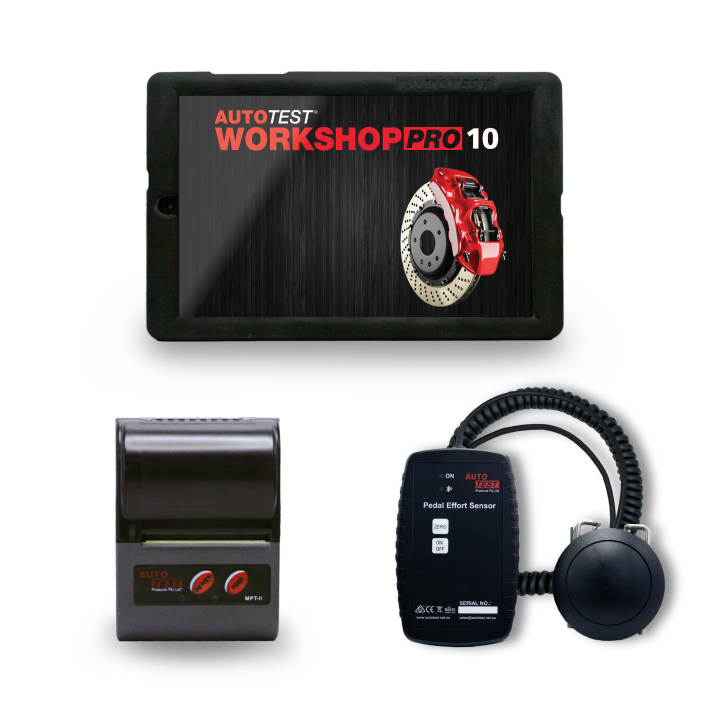

Workshop Pro with Pedal Effort Sensor and Bluetooth Printer

<span>Auto<em>Test®</em></span> Workshop Pro 10 - Image 8

AutoTest® Workshop Pro 10

The AutoTest Workshop Pro 10 is both a sophisticated, self-contained brake testing unit with an advanced workshop maintenance tool. Designed to test service and emergency brakes in cars, trains, buses, farming, and airport vehicles.

Compliant in Australia with roadworthy regulations in WA, QLD, VIC, SA, NT, NSW* & ACT. *

*IMPORTANT: For NSW ACT the Pedal Effort Sensor is an additional requirement to be compliant. Purchase our Workshop Pro 10 & amp, Pedal Kit for use in NSW and ACT.

10.1” high-definition touch screen
Calculates and displays average and maximum deceleration, distance to stop, test speed and tri-axial deceleration
Calculates and displays MFDD (Mean Fully Developed Deceleration) in accordance with ECE Reg 13
Tablet: Ultra-lightweight (480g), compact (168 x 242 x 8.1mm) and portable
Pedal Effort Sensor: 500gms, 90x145x32mm
Robust construction
Android operating system
32GB Storage
Micro USB for faster charging
Up to 7 hours of continual use
WIFI and Bluetooth interface
Card slot: microSD, up to 256 GB (dedicated slot)
Has WLAN (Wireless Local Area Network) to connect and communicate via Wi-Fi. Tablet does not support sim cards.
GPS or Glonass or Galileo positioning receiver, providing longitude and latitude.
Position acquisition time – 1 Min Maximum
12-month licensing
12-month warranty
2-month calibration for tablet and Pedal Effort Sensor
Calibration that is internationally traceable through NATA
Built-in integrity check
Rechargeable, sealed, Li-Po battery, with low battery level indicator and automatic shut – down.
Comprehensive after-sales service and assistance

Input:

Tablet: Accelerometer: rated to less than ±1% over 0-1.5g
Pedal Effort Sensor: Load Cell: accuracy ±2%

Output:

Display: 10.1” (1920 x 1200) IPS with capacitive 10-point multitouch
Graphical output
Pedal Effort Sensor: Peak pedal effort

Analysis of test results:

GPS location of test (longitude/latitude)
Average and maximum deceleration
Test duration
Test speed
Stopping distance
Time to stop.
MFDD (Mean Fully Developed Deceleration)
Side shift
Stores over 1000 test results with WIFI, USB or Bluetooth

Power source:

Tablet: Li-Po 4850mAh rechargeable battery
Pedal Effort Sensor: AA batteries Standard accessories:
Pedal Effort Sensor* NSW & ACT requirement for compliant brake testing
Battery charger (Australia Only)
AutoTest Bluetooth printer
Velcro for case restraint
User Manual

Optional features:

Suction cups for use to secure on motorbikes, quad bikes, etc.
AutoLight PLUS software available to connect you AutoLight window tint tester 1.0 line/sec.

All light vehicles, 4WD vehicles, Motorbikes and quad bikes, Light mining vehicles, Farming and agriculture vehicles, Airport vehicles, Forklifts, Trains
