AutoLight Plus MAGNETIC Premium Window Tint Meter

AutoLight Plus MAGNETIC Premium Window Tint Meter

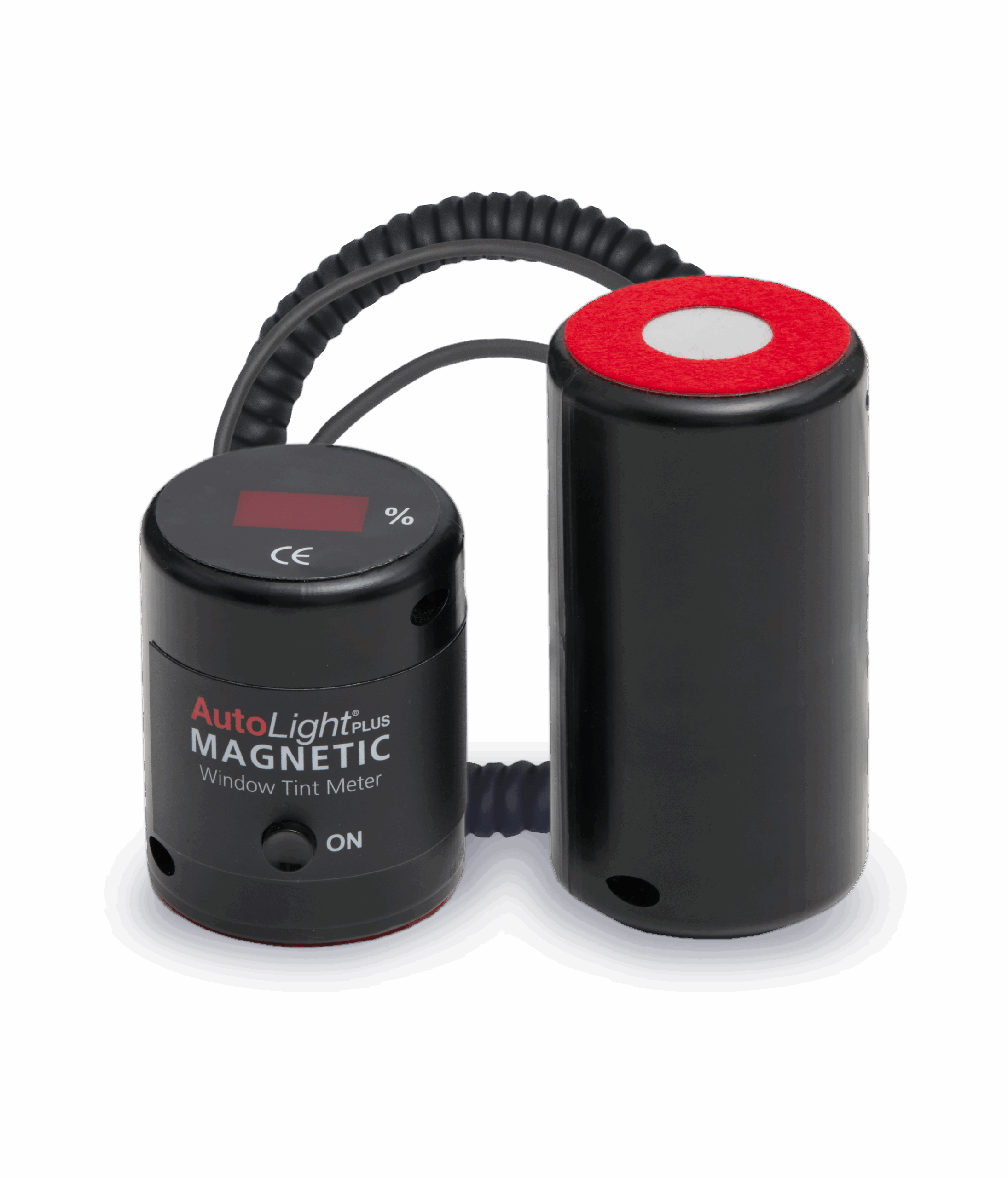

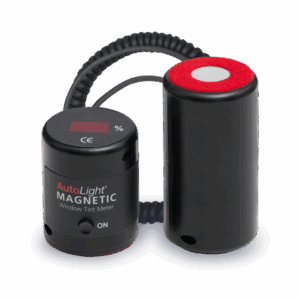

AutoLight® Plus MAGNETIC is a premium, hands free Light Transmission Meter that measures the level of light transmittance through a tinted window to determine its safety level.
Our new AutoLight® Plus MAGNETIC has magnets so you can test hands free! Making it possible for a single operator to take a photo of the results without dropping the AutoLight®. This is the fastest tint tester on the market, which gives accurate results with a single button operation, and the additional option to send results to your AutoTest Bluetooth Printer with the purchase of the AutoLight App and Workshop PRO 10 tablet! This will allow you to send your tint results from the Workshop PRO 10 directly to your regulator’s Online Portal or their App.
Victorian legislation has changed for window tint testing. You are now required to take a photo of each window test result. As quoted by VicRoads regulations, dated 2012, “licensed vehicle testers must take, and store digital photographs of the vehicles being inspected during a roadworthiness test.” Check the regulations in your area to see how it effects your testing requirements.

The eNoise is a handheld, standalone portable device for the measurement and analysis of the sound pressure level emitted by a stationary vehicle. With the additional feature of an integrated internal tachometer that simultaneously monitors the acoustic signal of the exhaust to measure the engine speed, without the need of any external wiring or additional equipment.

Specifications:

Measured parameter Sound pressure
Frequency range 63Hz to 10kHz
Dynamic range 80dB
Max sound pressure level 120dB
Level ranges 60 – 100dB, 70 – 110dB, 80 – 120dB
Frequency weighting A
Measurement time 1s in SPL Test
1.5s in Engine Speed Test
Displayed parameters SPL
RPM
Input parameters required No. cylinder
No. stroke
Power supply Rechargeable battery pack (automatic power off below 10%) “Battery Flat” displayed
Operating time 9 hours continuous
IP rating IP53
Microphone 7.5mm electret, frequency range 20Hz – 20kHz
Display (240 x 160) pixel full graphics display
Keypad 40 keys alphanumeric tactile membrane keypad
Weight 0.4kg
Physical dimensions 230 x 95 x 50mm
Temperature range 0° – 60°C
Humidity range 20% – 90%

Applicable standards:

Type Standard
Class 1  International Electrotechnical Commission Publication IEC 61672-1 Ed. 1.0 (Bilingual 2002):
Electroacoustics – Sound level meters – Part 1: Specifi cations
Class 1 Australian Standard AS IEC 61672.1-2004: Electroacoustics – Sound level meters – Specifications
Type 1 International Electrotechnical Commission Publication IEC 60654 (1979) “Precision sound level meters”
Type 1 Australian Standard AS 1259.1-1990 “Acoustics – Sound level meters – Part 1: Non-integrating

Conveyor Belts

Product Downloads

Click here for product manuals and brochures.

AutoTest eNoise Brochure
AutoTest eNoise Manual
